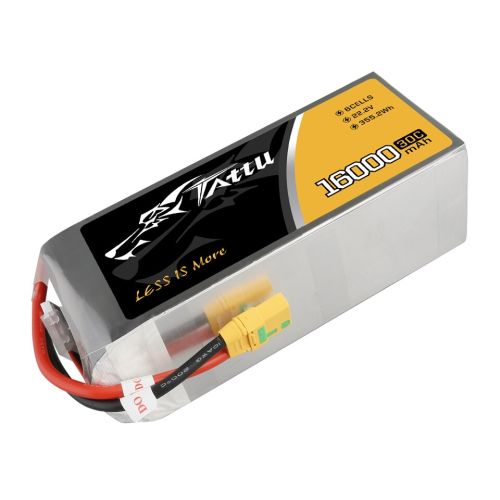

Tattu 16000mAh 30C 22.2V 6S Lipo Battery Pack With XT90 ANTI SPARK Plug
Features:
- Stable automatic stacking technology enables single-cell capacities of 16000mAh.
- The most strict single cell capacity, voltage, resistance, discharge curve matching process.
- Superior Japan and Korea Lithium Polymer raw materials.
Specifications:
- Minimum Capacity: 16000mAh
- Configuration: 6S1P/ 22.2v
- Discharge Rate: 30C
- Max Burst Rate: 60C
- Net Weight: 2000g
- Dimensions: 192 x 77 x 66mm
Application:?
Tattu 30C 22.2V 6S 16000mAh Lipo Battery Pack with XT90 ANTI SPARK PLUG is a great choice for large-sized aerial photography vehicles like the DJI S800, S1000, Gryphon X8, OnyxStar FOX-C8-HD and professional UAVs and E1200 multirotors.This battery packs a ton of power in a compact form factor, giving you the flight time you need on your heavy-lift aerial photography rigs.
| Balancer Connector Type: | JST-XHR-7P |
| Brand: | Tattu |
| Capacity(mAh): | 16000 |
| Balancer Wire Length(mm): | 65 |
| Configuration: | 6S1P |
| Connector Type: | XT90 ANTI SPARK |
| Discharge Rate (C): | 30 |
| Height(+/-2mm): | 66 |
| Length(+/- 5mm): | 192 |
| Max Burst discharge Rate (C): | 60 |
| Net Weight(+/- 20g): | 2000 |
| Voltage(V): | 22.2 |
| Width(+/- 2mm): | 77 |
| Wire Gauge: | 10# |
| Discharge Wire Length(mm): | 150 |
| C Rating | 30 |
|---|---|
| Battery Voltage | 6S 22.2V |
| Battery Capacity | 15001 - 17500mAh |
| Brand | TATTU |
