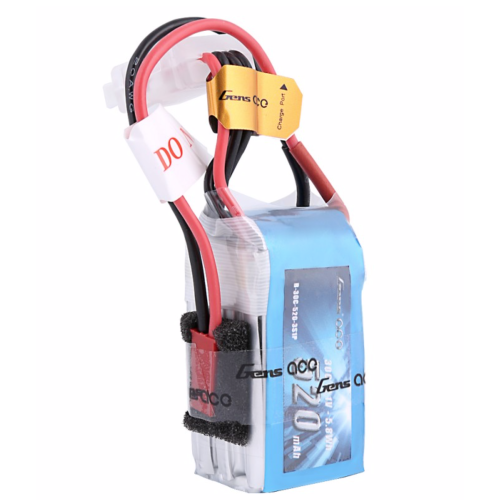

Gens ACE 520mah 3S1P 11.1V 30C with JST Connector
Gens ace 520mAh 11.1V 30C 3S1P Lipo Batteries offers you an excellent combination of weight, power, and performance.
These batteries are fit to all small Foam Planes Wing size up to 60cm and Drones with 2s and 3s Motor 100-120 Size.
Features:
- Stable automatic stacking technology enables single-cell capacities of 520mAh.
- Superior cell matched the consistency.
- Automatic production line to guarantee high quality and consistent performance.
- Gens Ace batteries provide high quality, reliable power for your Rc models.
- Local after-sales service(located in Dublin, CA).
Specifications:
- Minimum Capacity: 520mAh
- Configuration: 3S1P / 11.1V / 3Cells
- Discharge Rate: 30C
- Max Burst Discharge Rate: 60C
- Net Weight(±5g): 45g
- Dimensions: 45mm x 24mm x 22.5mm (L x W x H)
- Balancer Connector Type:JST-XHR
Compatible with:
Gens ace 520mAh 11.1V 30C 3S1P Lipo Battery Packs are Equipped with industry-standard JST-SYP plug, compatible with LiPo balance chargers for your small Foam Planes Wing and RC models.
Brand | Gens ace |
Capacity(mAh) | 520 |
Voltage(V) | 11.1 |
Discharge Rate (C) | 30 |
Max Burst discharge Rate (C) | 60 |
Configuration | 3S1P |
Net Weight(±20g) | 45 |
Length(±5mm) | 45 |
Width(±2mm) | 24 |
Height(±2mm) | 22.5 |
Wire Gauge | 20# |
Discharge Wire Length(mm) | 100mm |
Balancer Connector Type | JST-XHR-4P |
Balancer Wire Length(mm) | No |
C Rating | 30 |
---|---|
Battery Voltage | 3S 11.1V |
Battery Capacity | 0 - 2500mAh |
Brand | GENS ACE |
